Gravity Roller Conveyors UK Manufactured

What are gravity rollers when to use them and why ?

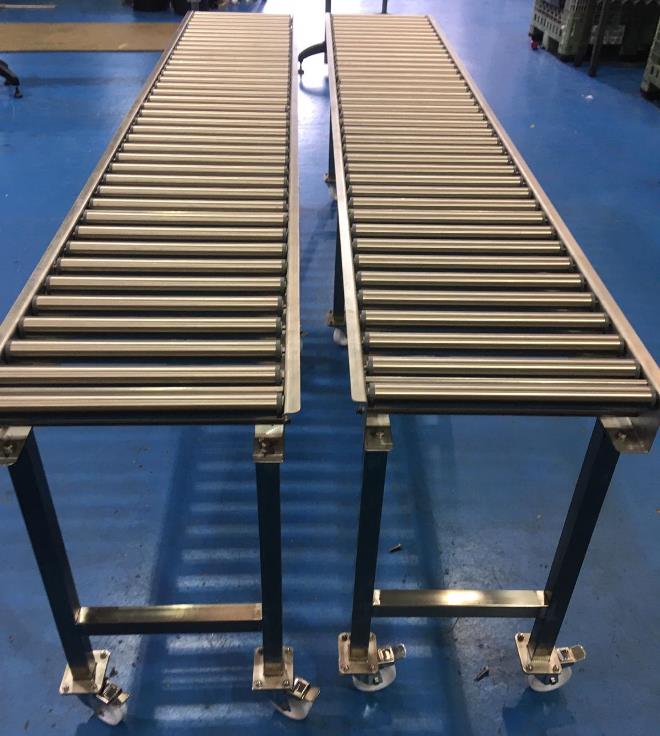

Gravity Rollers - The rollers are unique as in they have no motor to drive the movement of the rollers they rely on gravity or a slight incline to activate the rollers to rotate and therefore move products.

When to use them - Used predominately with flat based products usually boxes for the packaging industry and distribution centres.

Why use Gravity - Often used as it is a basic budget system with low costs and maintenance.

C-Trak offer a range of gravity roller options so suit most applications

Click to Call Tel: 01525 850316

Roller diameters from 25mm - 30mm - 40mm - 50mm supplied in either plastic, stainless steel, bright zinc plated mild steel or self colour mild steel. Rollers can be fitted with a spring loaded or fixed spindle. Spindles can be round or hexagonal.

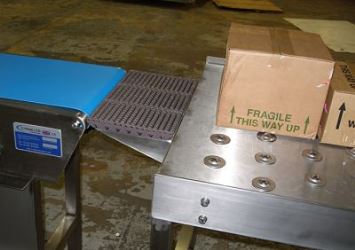

Skate Wheel & Ball Tables

Skate wheel conveyors ensure that the container stays in orientation when traveling through a bend, they are a very cost effective way of transporting your products.

Gravity Close Pitch

30mm diameter rollers set at 35mm pitch mounted in a clean line stainless steel framework. This is ideal for transporting smaller products.

Gravity Track Standard

50mm diameter rollers, set at a pitch of 80mm. Frameworks can be either mild steel painted or stainless steel depending on the application.

Low level Track

40mm diameter rollers at 45mm pitch. Mounted in a stainless steel frame. This unit is fitted with en end stop and adjustable feet.
